Non Armored Fiber Optic Cable GYFTY With Water Blocking Tape

Brand Name : Fiberplan

Model Number : GYFTY

Certification : ISO 9001; TÜV certificate

Place of Origin : China

MOQ : 1Km

Price : Negotiation

Payment Terms : L/C, L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 km per month

Delivery Time : 5~8 work days

Packaging Details : Wooden Drum

Application : Telecommunication,Network

Fiber type : G652B, G652D, G657A1, G657A2, single mode, multi mode

Jacket material : PE,LSZH,PVC,TPU,LSZH or PVC

Structure : Stranded loose tube

Length : Standard length of cable shall be 2 km. Other cable length is also availabler

Cable Diamter : 9-16.5

Lead Time : 5 days

Fiber Count : 2-288 fibers

Loose Tube : PBT loose Tube

Central Strength Member : FRP

Laying Ways : Pipeline/Overhead/Direct buried/Duct

Manufacturer : Yes

Package : Plywood drum

Rodent Protection : Yes

Contact Now

Non Armored Fiber Optic Cable GYFTY With Water Blocking Tape

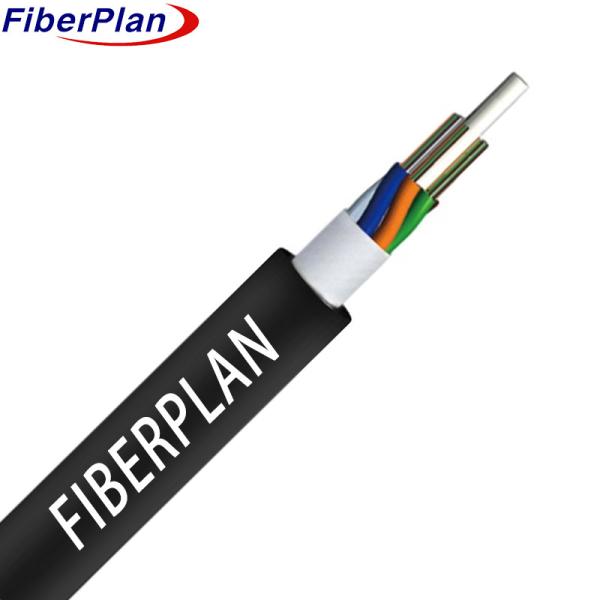

Description

Bunches of fibers sit inside a flexible tube made of sturdy plastic. These tubes are filled with a substance

that repels water. Inside the core, there's a strong non-metallic piece called Fiber Reinforced Plastic (FRP).

The tubes and fillers are twisted around this central strength piece to form a tight, round core. To keep water

out, the core is covered in water-resistant tape, and finally, the whole cable is coated in a PE sheath for

protection.

Application

1 Suitable for outdoor distribution.

2 Designed for trunk power transmission systems.

3 Ideal for access networks and local networks in areas with high electromagnetic interference.

Characteristic

1 Exhibits strong mechanical resilience and handles temperature changes effectively.

2 Features a high-strength, hydrolysis-resistant loose tube.

3 Utilizes a specialized tube filling compound to provide crucial protection for the fiber.

4 Demonstrates resistance to crushing while maintaining flexibility.

5 Employs a filling compound for the loose tube to ensure added protection.

Structure details

No. of fiber 6F 12F 24F 36F 48F 72F 96F 144F
No. of tube 1 2 4 3 4 6 8 12
Fiber per tube 6 6 6 12 12 12 12 12
No. of filler rod 4 3 1 2 1 0 0 0
Tube diameter (±0.1mm) 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0
Thickness of loose tube
(±0.05mm)		 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3
Nom. out diameter (±0.2mm) 8.6 8.6 8.6 8.6 8.6 9.2 10.8 13.4
Nom. jacket thickness
(±0.1mm)		 1.6 1.6 1.6 1.6 1.6 1.6 1.7 1.7
Loose tube Material PBT Color Standard spectrum
Filler rod Material PP Color Black
Tube filling Material Filling compound
Central strength member Material FRP Diameter 1.5mm (6 - 48F)
2mm (72 - 144F)
Layer PE (for 96C -144C only)
Water blcoking system Material water blocking tape
Rip cord Type 1110*2
Out sheath Material MDPE Color Black

Mechanical and environment performance

Tensile strength Long term(N) 600N
Short term(N) 1500N
Crush load Long term (N/100mm) 300N/100mm
Short term (N/100mm) 1000N/100mm
Bending radius Dynamic (mm) 20D
Static (mm) 10D
Storage Temperature -20℃～+70℃
Installation Temperature -10℃～+60℃

Fiber Performance

Fiber style Unit SM G652D MM 50/125 MM 62.5/125
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.36/0.22 ≤3.0/1.0 ≤3.0/1.0
Cladding diameter um 125±0.2 125±0.2 125±0.2
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±3 242±3 242±3

Non Armored Fiber Optic Cable GYFTY With Water Blocking TapeNon Armored Fiber Optic Cable GYFTY With Water Blocking Tape
