Standard Length 2km PE Jacket GYXTC8S Aerial Fiber Optic Cable for Aerial Installations

Brand Name : Fiberplan

Model Number : GYXTC8S

Certification : ISO9001, CE, ROHS, CE and ROHS, ISO9001/ISO14001/OHSAS18001/TLC

Place of Origin : China

MOQ : 1Km

Price : Negotiation

Payment Terms : L/C, L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 km per month

Delivery Time : 5~8 work days

Packaging Details : Wooden Drum

Fiber type : G652B, G652D, G657A1, G657A2, 62.5/125, 50/125

Color : Black or customized

Jacket material : PE,LSZH,PVC,TPU,LSZH OR PVC

Installation : Burial/aerial/duct

Structure : Loose tube

Operating temperature : -40 ~ +75

Length : Standard length of cable shall be 2 km. Other cable length is also availabler

Armor Material : Corrugated Steel Tape

Bend Radius : 20x cable diameter

Cable Type : Single-mode

Crush Resistance : 1000N/100mm

Fiber Type : G.652D

Jacket Material : PE

Contact Now

Flexible and Durable Figure 8 GYXTC8S Fiber Optic Cable for Aerial Installations

Description

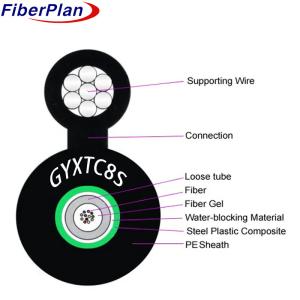

The cable's construction features fibers housed in a high-modulus plastic loose tube filled with a

water-resistant compound. A central steel wire provides added strength, with tubes and fillers

stranded around it to form a compact, circular cable. A PSP (Polyethylene-Steel-Polyethylene)

layer is applied around the core, along with supporting stranded wires, all enclosed in a

polyethylene (PE) sheath, creating a figure 8 structure. Specifically designed for self-supporting

aerial installations, this cable ensures reliable performance in such setups.

Application

1. Tailored for aerial and duct installations, accommodating various deployment methods.
2. Engineered for outdoor distribution, ensuring resilience in diverse environments.
3. Supports long-distance connections and local area network communication, offering versatile

connectivity options.

Characteristics

1. Exhibits robust mechanical strength and resilience to varying temperatures.
2. Features a hydrolysis-resistant, high-strength loose tube design for enhanced durability.
3. Includes a specialized tube filling compound that offers critical protection for the fibers.
4. Balances crush resistance with flexibility, ensuring versatility in applications.
5. Utilizes a PE sheath to shield the cable from UV radiation, significantly extending its lifespan.

Cable construction details

No. of fibers 6 12 24 48 72 96 144
No. of tubes 1 2 4 4 6 8 12
fibers per tube 6 6 6 12 12 12 12
Filler Rod 4 3 1 1 0 0 0
Tube diameter (±0.1mm) 2.0 2.0 2.0 2.0 2.0 2.0 2.0
Thickness of loose tube
(±0.05mm)		 0.3 0.3 0.3 0.3 0.3 0.3 0.3
Outer diameter (±0.5mm) 5.4X8.6-15.0 5.4X8.6-15.0 5.4X8.6-15.0 5.4X9.8-16.5 5.4X10.8-17.5 5.4X12.2-19.0 5.4X14.9-22.0
Thickness of outer sheath
(±0.1mm)		 1.6 1.6 1.6 1.6 1.6 1.7 1.7
Loose tube Material PBT Color standard spectrum
Water blocking
system		 Material Filling gel / Water blocking tape
Central strength
member		 Material FRP Diameter 1.4(6-48)
2.0(72-144)
Mental strength
member		 Material Stranded steel wire Type 1.0mm*7
Armor Material Aluminum tape
Gallus Material PE Size
(hight*weight)		 2.5*1.5mm
Out sheath Material PE Color Black

Cable mechanical and environment chararcteristics

Tensile strength Long term(N) 3000N
Short term(N) 7000N
Crush load Long term(N) 300N/100mm
Short term(N) 1000N/100mm
Bending radius Dynamic 20D
Static 10D
Installation Temperature -10℃～+60℃
Storage Temperature -40℃～+70℃

Fiber characteristics

Fiber type Unit SM G652D MM 50/125 MM 62.5/125
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.36/0.24 ≤3.0/1.5 ≤3.0/1.5
Cladding diameter um 125±0.8 125±0.8 125±0.8
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±6 242±6 242±6

Standard Length 2km PE Jacket GYXTC8S Aerial Fiber Optic Cable for Aerial Installations

Standard Length 2km PE Jacket GYXTC8S Aerial Fiber Optic Cable for Aerial Installations

Standard Length 2km PE Jacket GYXTC8S Aerial Fiber Optic Cable for Aerial Installations
