4 6 8 12 Core Double Sheath Kevlar Strengthen Spiral Steel Indoor Fiber Cable
Description

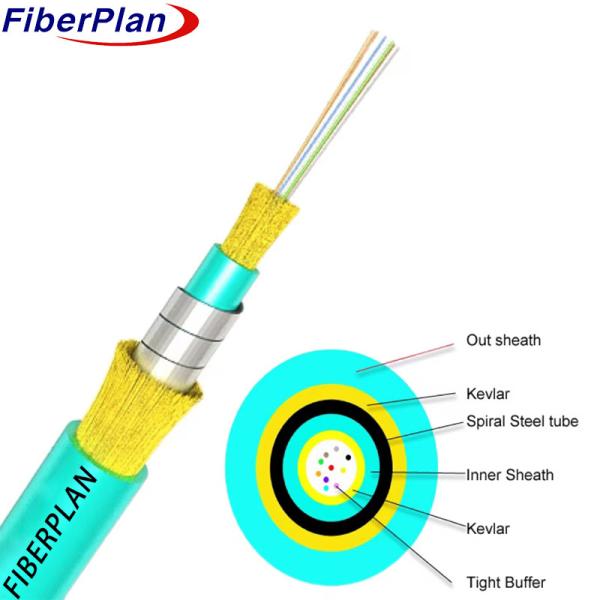

This cable configuration consists of multiple fibers with either Φ900μm or Φ600μm tight buffer, spiral steel armor
for added protection, two layers of Kevlar yarn for strength, and a double sheath option (LSZH/PVC/OFNR Jacket)
for enhanced durability and safety.
Application
- 1 Suitable for both indoor and outdoor distribution applications.
- 2 Ideal for use in pigtails and patch cords.
- 3 Designed for optical connections in optical communication equipment rooms and optical distribution frames.
- 4 Well-suited for optical connections in various optical apparatus and equipment.
-
Characteristics
1 Demonstrates reliable mechanical and environmental characteristics.
2 Flame retardant properties align with relevant standards for safety.
3 Mechanical features meet industry standards, ensuring durability.
4 Soft, flexible, easy to splice, and supports high-capacity data transmission.
5 Designed to meet diverse market and client requirements.
Cable construction details
| Technical Parameters: |
| Out Diameter(MM) |
2.0 |
Weight(KG) |
15.0 |
| 2.8 |
18.0 |
| 3.0 |
18.0 |
| Storage temperature(℃) |
-20+60 |
| Min Bending Radius(mm) |
Long term |
10D |
Min Bending
Radius(mm) |
Short term |
20D |
Min allowable
Tensile Strength(N) |
Long term |
300 |
Min allowable
Tensile Strength(N) |
Short term |
1000 |
| Crush Load (N/100mm) |
Long term |
500 |
| Crush Load (N/100mm) |
short term |
1000 |
Fiber characteristic
| Fiber style |
Unit |
SM
G652 |
SM
G652D |
MM
50/125 |
MM
62.5/125 |
MM
OM3-300 |
| condition |
nm |
1310/1550 |
1310/1550 |
850/1300 |
850/1300 |
850/1300 |
| attenuation |
dB/km |
≤ |
≤ |
≤ |
≤3.0/1.0 |
≤3.0/1.0 |
| 0.36/0.23 |
0.34/0.22 |
3.0/1.0 |
---- |
---- |
| Dispresion |
1550nm |
Ps/(nm*km) |
---- |
≤18 |
---- |
---- |
Dispresion |
| 1625nm |
Ps/(nm*km) |
---- |
≤22 |
---- |
---- |
|
| Bandwith |
850nm |
MHZ.KM |
---- |
---- |
≧400 |
≧160 |
Bandwith |
| 1300nm |
MHZ.KM |
---- |
---- |
≧800 |
≧500 |
|
| Zero dispersion wavelength |
nm |
1300-1324 |
≧1302,
≤1322 |
---- |
---- |
≧ 1295,
≤1320 |
| Zero dispresion slope |
nm |
≤0.092 |
≤0.091 |
---- |
---- |
---- |
| PMD Maximum Individual Fibr |
|
≤0.2 |
≤0.2 |
---- |
---- |
≤0.11 |
| PMD Design Link Value |
Ps(nm2*k
m) |
≤0.12 |
≤0.08 |
---- |
---- |
---- |
| Fibre cutoff wavelength λc |
nm |
≧ 1180,
≤1330 |
≧1180,
≤1330 |
---- |
---- |
---- |
Cable sutoff
wavelength λcc |
nm |
≤1260 |
≤1260 |
---- |
---- |
---- |
| MFD |
1310nm |
um |
9.2+/-0.4 |
9.2+/-0.4 |
---- |
---- |
---- |
| 1550nm |
um |
10.4+/-0.8 |
10.4+/-0.8 |
---- |
---- |
---- |
Numerical
Aperture(NA) |
|
---- |
---- |
0.200+/
-0.015 |
0.275+/-0.
015 |
0.200+/-0
.015 |
Step(mean of bidirectional
measurement) |
dB |
≤0.05 |
≤0.05 |
≤0.10 |
≤0.10 |
≤0.10 |
Irregularities over fiber
length and point |
dB |
≤0.05 |
≤0.05 |
≤0.10 |
≤0.10 |
≤0.10 |
| Dicontinuity |
Difference backscatter
coefficient |
dB/km |
≤0.05 |
≤0.03 |
≤0.08 |
≤0.10 |
≤0.08 |
| Attenuation uniformity |
dB/km |
≤0.01 |
≤0.01 |
|
|
|
| Core dimater |
um |
|
|
50+/-1.0 |
62.5+/-2.5 |
50+/-1.0 |
| Cladding diameter |
um |
125.0+/-0.1 |
125.0+/-0.1 |
125.0+/-0.1 |
125.0+/-0.1 |
125.0+/-0.1 |
| Cladding non-circularity |
% |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
| Coating diameter |
um |
242+/-5 |
242+/-5 |
242+/-5 |
242+/-5 |
242+/-5 |
Coating/chaffinch
concentrically error |
um |
≤12.0 |
≤12.0 |
≤12.0 |
≤12.0 |
≤12.0 |
| Coating non circularity |
% |
≤6.0 |
≤6.0 |
≤6.0 |
≤6.0 |
≤6.0 |
| Core/cladding conentricity error |
um |
≤0.6 |
≤0.6 |
≤1.5 |
≤1.5 |
≤1.5 |
| Curl(radius) |
um |
≤4 |
≤4 |
---- |
---- |
---- |
