Distribution Tight Buffer Optical Cable GJFJV

Brand Name : Fiberplan

Model Number : GJFJV

Certification : ISO 9001; TÜV certificate

Place of Origin : China

MOQ : 1Km

Price : Negotiation

Payment Terms : L/C, L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 km per month

Delivery Time : 5~8 work days

Packaging Details : Wooden Drum

Cable Type : Distribution

Fiber Type : Singlemode

Jacket Material : LSZH

Color : Black,Customized

Structure : Loose tube

Bend Radius : 10D

Cable Diameter : 6.0mm

Fiber Count : 12

Installation Temperature : -10°C to +60°C

Jacket Color : Custimized

Contact Now

Distribution Tight Buffer Optical Cable (GJFJV)

Description

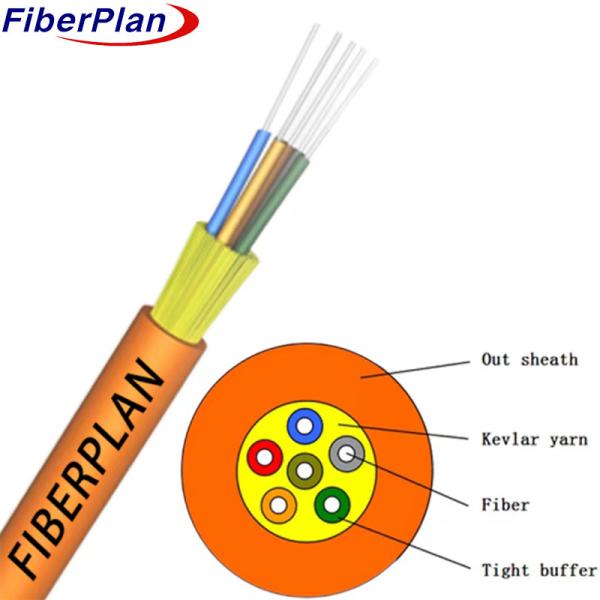

The Distribution Tight Buffer Optical Cable is designed with 2 to 24 cores, utilizing either 900μm or 600μm

flame-retardant tight buffer fiber as the optical communication medium. The tight buffer fiber is reinforced

with a layer of aramid yarn serving as the strength member, and the cable is finalized with a layer of PVC

or LSZH material as the outer jacket for added protection.

Application

  1. 1 Pigtails and Patch Cords Application: This cable is commonly employed in the creation of pigtails and

  2. patch cords, ensuring reliable connectivity in various optical communication setups.

  3. 2 Interconnect Lines for Equipment and Optical Connections: It serves as interconnect lines for equipment

  4. and plays a crucial role in optical connections within optical communication rooms and optical distribution

  5. frames.

  6. 3 Indoor Cabling, Specifically for Distribution: Primarily designed for indoor cabling, it is particularly well-suited

  7. for use as a distribution cable, providing efficient and organized connectivity within buildings.

Characteristics

1 Robust Design: Exhibits good mechanical and environmental characteristics for reliable performance.

2 Flame Retardant: Meets relevant standards for flame retardancy, ensuring safety.

3 Jacket Mechanical Compliance: The jacket's mechanical features meet industry standards for enhanced

durability.

4 User-Friendly: Soft, flexible, easy to lay, and splice, designed for convenient installation.

5 High Capacity Transmission: Supports significant data transmission, meeting modern communication

demands. Adaptability caters to diverse market and client requirements.

Cable Mechanical characteristic

Items Cable diameter Weight
2 cores 4.0mm 22.00kg/km
4 cores 4.0mm 22.00kg/km
6 cores 4.0mm 23.00kg/km
8 cores 5.0mm 27.00kg/km
10 cores 5.5mm 30.00kg/km
12 cores 6.0mm 35.00kg/km
Storage temperature(℃) -20 ~ +60
Min Bending Radius(mm) Long term 10D
Min Bending
Radius(mm)
Short term 20D
Min allowable
Tensile Strength(N)
Long term 200
Min allowable
Tensile Strength(N)
Short term 600
Crush Load (N/100mm) Long term 200
Crush Load (N/100mm) short term 1000

Fiber characteristic

Fiber style Unit SM
G652
SM
G652D
MM
50/125
MM
62.5/125
MM
OM3-300
condition nm 1310/1550 1310/1550 850/1300 850/1300 850/1300
attenuation dB/km ≤3.0/1.0 ≤3.0/1.0
0.36/0.23 0.34/0.22 3.0/1.0 ---- ----
Dispresion 1550nm Ps/(nm*km) ---- ≤18 ---- ---- Dispresion
1625nm Ps/(nm*km) ---- ≤22 ---- ----
Bandwith 850nm MHZ.KM ---- ---- ≧400 ≧160 Bandwith
1300nm MHZ.KM ---- ---- ≧800 ≧500
Zero dispersion wavelength nm 1300-1324 ≧1302,
≤1322
---- ---- ≧ 1295,
≤1320
Zero dispresion slope nm ≤0.092 ≤0.091 ---- ---- ----
PMD Maximum Individual Fibr   ≤0.2 ≤0.2 ---- ---- ≤0.11
PMD Design Link Value Ps(nm2*k
m)
≤0.12 ≤0.08 ---- ---- ----
Fibre cutoff wavelength λc nm ≧ 1180,
≤1330
≧1180,
≤1330
---- ---- ----
Cable sutoff
wavelength λcc
nm ≤1260 ≤1260 ---- ---- ----
MFD 1310nm um 9.2+/-0.4 9.2+/-0.4 ---- ---- ----
1550nm um 10.4+/-0.8 10.4+/-0.8 ---- ---- ----
Numerical
Aperture(NA)
  ---- ---- 0.200+/
-0.015
0.275+/-0.
015
0.200+/-0
.015
Step(mean of bidirectional
measurement)
dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
Irregularities over fiber
length and point
dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
Dicontinuity
Difference backscatter
coefficient
dB/km ≤0.05 ≤0.03 ≤0.08 ≤0.10 ≤0.08
Attenuation uniformity dB/km ≤0.01 ≤0.01
Core dimater um     50+/-1.0 62.5+/-2.5 50+/-1.0
Cladding diameter um 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242+/-4 242+/-4 242+/-4 242+/-4 242+/-4
Coating/chaffinch
concentrically error
um ≤12.0 ≤12.0 ≤12.0 ≤12.0 ≤12.0
Coating non circularity % ≤6.0 ≤6.0 ≤6.0 ≤6.0 ≤6.0
Core/cladding conentricity error um ≤0.6 ≤0.6 ≤1.5 ≤1.5 ≤1.5
Curl(radius) um ≤4 ≤4 ---- ---- ----

Distribution Tight Buffer Optical Cable GJFJVDistribution Tight Buffer Optical Cable GJFJV
